Toro's TEMPUS™ Series Controller was designed to save you time and help manage your water resources. Water savings features, flexible irrigation scheduling, Wi-Fi accessibility, and Easy app programming all at your fingertips to help you master your garden. The TORO TEMPUS™ Pro Series Controller was designed with IoT WiFi accessibility to help manage your garden from wherever you are – on holiday, at the office, or simply on the sofa at home. Tempus fugit. Where will time take you?
Not every part of your property can be irrigated the same. That’s why Toro® provides complete irrigation solutions with features to promote healthy grass and plants for a lush garden.
With water meter input and the ability to link TEMPUS Pro to the weather website, the controller is the perfect water management instrument accessible from anywhere.
You have total control. With the IoT WiFi option and your smartphone, you can communicate with and program your system wherever you are.

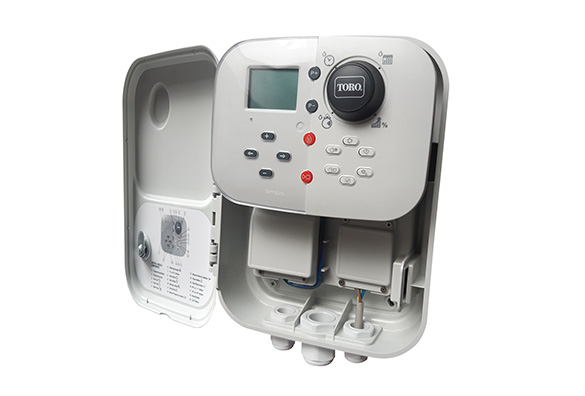

Easy to install. Easy to program. Installation and future servicing are quick and simple with a large LCD display and intuitive interface. The multilingual display can be set to one of 5 languages: English, Spanish, French, German, or Italian.
The optional Wi-Fi module enables the controller to be remotely monitored and accessed anywhere within range of your home wireless network device, and can be remotely controlled with a smartphone.
The Water Budget feature enables the run time of all stations assigned to a specific program to be increased from 0% to 200% in 10% increments. With the Rain Delay feature you can postpone automatic watering operation from 1 to 31 days.
2 independent programs and 3 start times that can run concurrently with start time overlap protection within each program.
With the “Super Cap” option, the super-capacitor provides back up power for maintaining the current time and date in the event of a power cut for more than 24 hours without needing batteries.
From its fresh innovative design to its colours, TEMPUS compliments the furnishings in your home.
The IoT or Wi-Fi module enables the controller to be remotely monitored and accessed anywhere via internet or Wi-Fi, and can be remotely controlled with a smartphone.
Flow monitoring is one of the best water source management tools available today. Monitor and react to system leaks or breaks, stuck valves, and damaged sprinklers. Issues can be quickly detected and bypassed automatically.
Run times from 1 minute to 8 hours in 1 minute increments meet the needs of standard or drip irrigation applications. Additionally, the ability to set run times from 1 second to 8 minutes provides efficient watering for other garden needs.
|MODEL||TEMPUS SERIES CONTROLLER||TEMPUS PRO SERIES CONTROLLER|
|Power||Input power: 220 VAC, 50 Hz; Output power: Max per station: 24 VAC, 0.25 A; Max total (including MV control): 24 VAC, 0.625 A||Input power: 220 VAC, 50 Hz; Output power: Max per station: 24 VAC, 0.25 A; Max total (including MV control): 24 VAC, 0.625 A|
|Dimensions||186 mm W x 140 mm H x 67 mm D||186 mm W x 140 mm H x 67 mm D|
|Weight||1.5 kg||1.5 kg|
|Number of Stations||4, 6 or 8 stations||From 4 to 16 stations with expansion modules of 4 stations each up to 16 stations|
|Number of Programs||2 independent programs||4 Independent programs (one can be set up as loop program)|
|Number of Start Times||3 start times per program||6 start times per program|
|Watering Time||From 1 minute to 8 hours (1 minute increments)||From 1 minute to 8 hours (1 minute increments)|
|Programming Options||Flexible irrigation programming: Daily (6 start times per day); Weekly; Even and Odd days; or at 1 to 30 day intervals||Flexible irrigation programming: Daily (6 start times per day); Weekly; Even and Odd days; or at 1 to 30 day intervals|

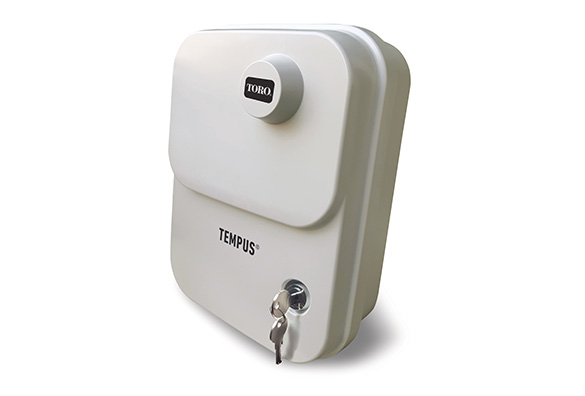

|Enclosures||Indoor with UV-resistant case; Outdoor with UV-resistant case and hinged locking door||Indoor with UV-resistant case; Outdoor with UV-resistant case and hinged locking door|
|Warranty||Two-year limited warranty. Refer to Operator’s Manual for further details||Two-year limited warranty. Refer to Operator’s Manual for further details|
